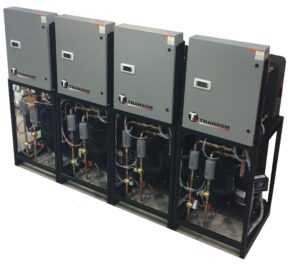

Lambert Chiller and Heat Pump

Water Cooled Capacities from 10 to 80 Tons

MAIN FEATURES

  • Water Cooled

  • SIZES from 10 to 80 Tons

  • Up to 12 modules

  • Redundancy N+1, N+2

  • Heat Recovery. Up to 160°F supply

  • Reversing Valve

  • Capacity Control

  • High Turn Down

  • Pre-made modular header

  • Scroll Compressors

  • Dual Circuit

  • No Cross Contamination

  • Brazed plate HX

  • Smallest Foot Print

  • Service access

Front Serviceable

Up to 960 tons with 12 modules

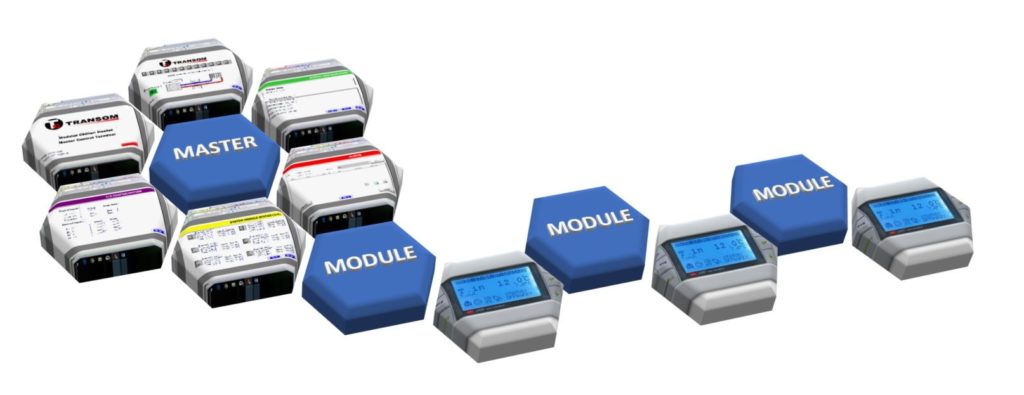

Central Controller

Allows multiple chillers to operate as one entity. Up to 12 modules.

The central controller logic is set up to maintain the system control accuracy no matter how many modules/stages are added.

OPTIONAL VARIABLE FLOW
Isolation valves and flow switches on both the evaporator line and the condenser line for each module allows for variable flow primary loop.
While the flow for each individual module remains constant allowing for overall system flexibility while retaining chiller stability

Model

Nom Cap

Cap (MBH)

Stages

LCF010

 10 Ton 135

4

LCF012

 12 Ton 154

4

LCF015

 15 Ton 177

4

LCF018

 18 Ton 206

4

LCF020

 20 Ton 237

4

LCF025

 25 Ton 260

2

LCF030

 30 Ton 315

2

LCF040

 40 Ton 400

2
LCF050 50 Ton 520

2

LCF060

 60 Ton 685

2
LCF070 70 Ton 805

2
LCF080 80 Ton 920

2

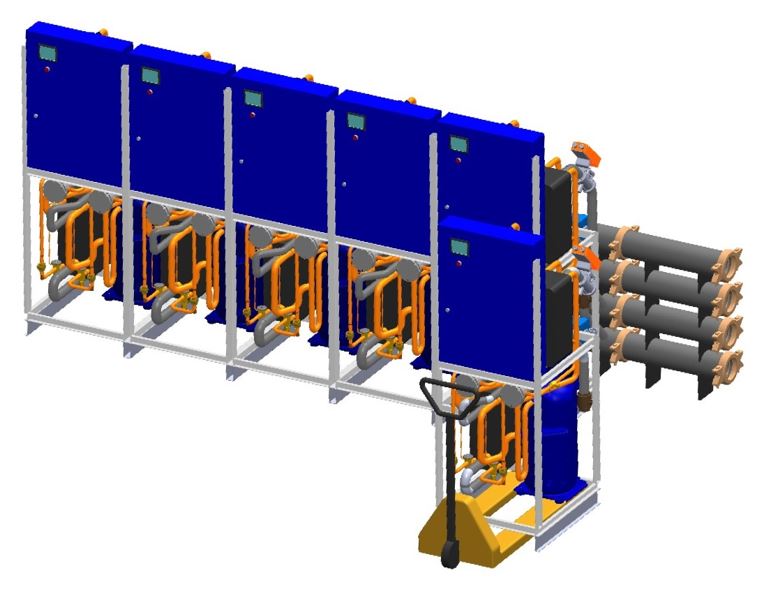

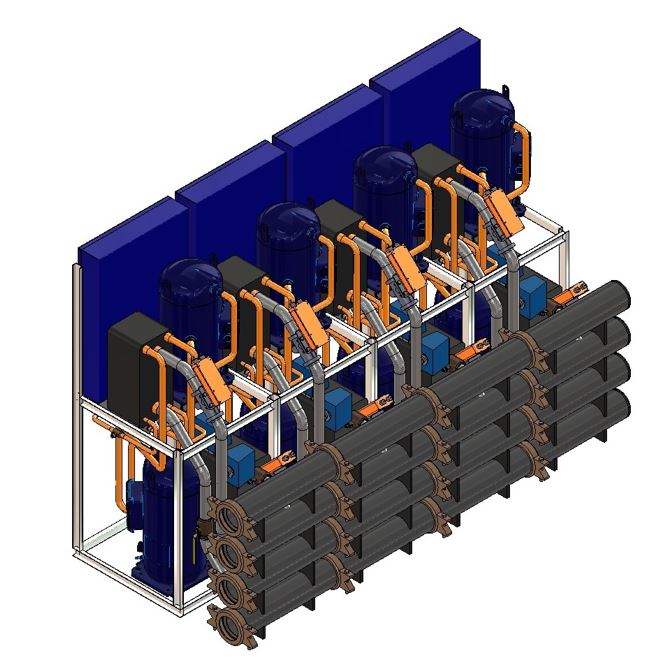

PRE INSTALL HEADER:
The design allows the headers to be pre-installed and flushed, making the installation schedule adaptive and flexible.

ADD MODULES WHILE SYSTEM IS LIVE:
The Modules are independent and can be installed or removed while the system is up and running, making service very flexible.

Compact design for easy maneuvering through doorways and elevators
