Topaz: Makeup Air Unit – Decarbonisation

The Topaz 100% Makeup Air Unit is designed to give over 110% of the heat exhausted. It not only has a heat recovery exchanger but it also has a built-in heat pump.

Ceiling Mounted or Outdoor Roof Mounted
With only ducting, power and drain to connect
Side-view of Topaz Makeup Air Unit

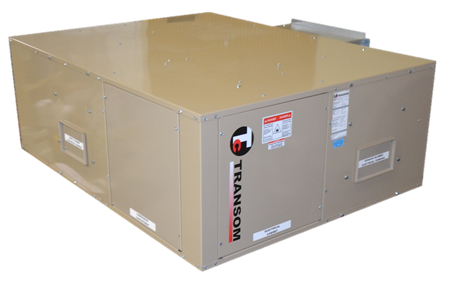

Large access panels for service

The built-in heat pump utilizes the exhaust air after the heat recovery exchanger as the source. By doing this, the source temperature will be substantially higher than the ambient conditions. This in turn maximizes the capacity and COP of the system.

For decarbonization projects the Topaz Makeup Air Unit does not rely on gas or oil as a source of the receipt. Paragraph

By having the heat pump system built into the Topaz Makeup Air Unit directly there is no need for external refrigeration piping or glycol piping in case of outside boilers or chillers. This will greatly reduce the installation cost of the units.

Internal components view of Topaz Makeup Air Unit
No sizing of components
No REF connections
No gas connections

The Topaz Unit provides both heating and cooling loads. In cooling mode the supply air is pre-cooled by the heat recovery exchanger. The heat pump in cooling mode then uses the exhaust air for the condenser which is lower than the ambient temperature. This results in an increased EER for the unit.

A number of control strategies can be utilized with the Topaz Makeup Air Unit. The simpler control strategy is a simple on/off switch by the user or a motion sensor mounted in a meeting room or classroom environment, for instance.

The controls can also be set up to utilize CO2 monitoring indoor and ambient levels to work out the variance and then modulate the makeup air unit as needed.

The controller can be further enhanced by using a day and night cycle, as well as weekend set ups.

The system can also be hooked up to a BMS system via BACnet or Modbus communication.

The unit is designed with EC blowers so the airflow can be varied. This makes it easier for the installation team to balance the air flows. Alternatively, the blowers can be offset to generate a positive pressurize system.

The outdoor unit is built with 2-inch insulation and double skin. The unit is mounted on a curb with exhaust and supply duct connection in a downward direction. The Supply air inlet connection and indoor exhaust connections are side mounted with rain hoods.

Model   MHP05 MHP11 MHP20 MHP32
Air Flow CFM 500 1100 2000 3200
Min Air Flow 390 858 1560 2500
Total Heat Capacity MBH 33.6 71.6 126.1 203.7
COP 5.24 5.56 5.68 5.53
Heating Recovery % 112% 114% 115% 114%
Total Cooling Capacity MBH 21.9 46 78.4 126.9
Unit EER 12.1 12.3 12.1 11.7
Cooling Recovery % 1.08 1.08 1.08 1.07
External static – Supply In wc 1.02 1.02 1.03 1.18
External static – Exhaust In wc 0.99 0.98 0.93 1.17
Power Source MHP05 MHP11 MHP20 MHP32
208-230/1/60
208-230/3/60
460/3/60
575/3/60
Dimensions MHP05 MHP11 MHP20 MHP32
Length In 50.8 56.6 64.9 74
Width In 38 45.9 53.3 61
Height in 19.2 22.5 28.4 34.3
Summer Conditions
Ambient
   88°F / 50% RH
Interior
   75°F / 50% RH
Winter Conditions
Ambient
   20°F / 80% RH
Interior
   68°F / 50% RH
